Model:LSZ1
14kw (7KW*2) Floor EV Charger, GBT Electric Vehicle Charging Station
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Product Details
| Category | Item | Specification | Remarks |
|---|---|---|---|
| Electrical Specifications | Output Power | 14KW (Dual 7KW) | |
| Output Current | 32A | ||
| Output Voltage | AC 220V | ||
| Input Frequency | 50Hz | ||
| Input Voltage | AC 220V | ||
| Mechanical Life of Gun Head | / | No-load insertion and extraction > 10000 times | |
| Communication Method | 4G Communication | / | Optional |
| RS485 Communication | / | Optional | |
| RFID | Support IC Card | Optional | |
| Human Machine Interface (HMI) | Display Screen | 4.3-inch LCD Display | |
| Indicator Light | N/A | ||
| Protection Functions | Overvoltage Protection | Yes | |
| Undervoltage Protection | Yes | ||
| Overcurrent Protection | Yes | ||
| Leakage Protection | Type A / A+DC6mA | Two types of leakage protectors are optional | |
| Overtemperature Protection | Yes | ||
| Ground Fault Protection | Yes | ||
| Lightning Protection | Yes | ||
| Materials | Pile Shell Material | Iron + Fire-resistant PC + PA66 + GF25% | |
| Charging Gun Shell Material | PC + PA66 + GF25% | ||
| Metal Guide Pillar | Silver-plated Copper Pillar | ||
| Cable Material | Flame Retardant Class V0 | ||
| Cable Length | 2*5 meters (length can be customized) | ||
| Protection Class | / | IP54 | |
| Environmental Indicators | Applicable Scenarios | Indoor / Outdoor | |
| Operating Temperature | -30℃ ~ +50℃ | ||
| Operating Humidity | 5% ~ 95% non-condensing | ||
| Operating Altitude | <2000m | ||
| Cooling Method | Natural Cooling | ||
| Storage Temperature | / | -40℃ ~ +85℃ | |
| Startup Method | / | Plug and Play, APP Control, Card Swiping, QR Code, Domestic Operation Cloud Platform | Multiple methods are optional |
| Reference Standards | / | GB/T34657, GB/T20234, GB/T18487 |
Supplementary Note: Communication methods include Bluetooth, WIFI, 4G, card swiping, metering electric meter and QR code.
| Category | Item | Specification | Remarks |
|---|---|---|---|
| Electrical Specifications | Output Power | 14KW (Dual 7KW) | |
| Output Current | 32A | ||
| Output Voltage | AC 220V | ||
| Input Frequency | 50Hz | ||
| Input Voltage | AC 220V | ||
| Mechanical Life of Gun Head | / | No-load insertion and extraction > 10000 times | |
| Communication Method | 4G Communication | / | Optional |
| RS485 Communication | / | Optional | |
| RFID | Support IC Card | Optional | |
| Human Machine Interface (HMI) | Display Screen | 4.3-inch LCD Display | |
| Indicator Light | N/A | ||
| Protection Functions | Overvoltage Protection | Yes | |
| Undervoltage Protection | Yes | ||
| Overcurrent Protection | Yes | ||
| Leakage Protection | Type A / A+DC6mA | Two types of leakage protectors are optional | |
| Overtemperature Protection | Yes | ||
| Ground Fault Protection | Yes | ||
| Lightning Protection | Yes | ||
| Materials | Pile Shell Material | Iron + Fire-resistant PC + PA66 + GF25% | |
| Charging Gun Shell Material | PC + PA66 + GF25% | ||
| Metal Guide Pillar | Silver-plated Copper Pillar | ||
| Cable Material | Flame Retardant Class V0 | ||
| Cable Length | 2*5 meters (length can be customized) | ||
| Protection Class | / | IP54 | |
| Environmental Indicators | Applicable Scenarios | Indoor / Outdoor | |
| Operating Temperature | -30℃ ~ +50℃ | ||
| Operating Humidity | 5% ~ 95% non-condensing | ||
| Operating Altitude | <2000m | ||
| Cooling Method | Natural Cooling | ||
| Storage Temperature | / | -40℃ ~ +85℃ | |
| Startup Method | / | Plug and Play, APP Control, Card Swiping, QR Code, Domestic Operation Cloud Platform | Multiple methods are optional |
| Reference Standards | / | GB/T34657, GB/T20234, GB/T18487 |
Supplementary Note: Communication methods include Bluetooth, WIFI, 4G, card swiping, metering electric meter and QR code.
Related Products
3.5kw/7kw/11kw/21kw wall-mounted charging pile with plug，Level 2 EV Charger Smart Electric Vehicle Charging Stations-Z1A
3.5kw/7kw/11kw/21kw wall-mounted charging pile with plug，Level 2 EV Charger Smart Electric Vehicle Charging Stations
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
3.5kw/7kw/11kw/21kw Wall mount EV Charger Level 2 Charging Station-Z3A
3.5kw/7kw/11kw/21kw Wall mount EV Charger Level 2 Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Z6A，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger-Z6A
Z6A，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code
Z6C，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger-Z6C
Z6C，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Z6E, 3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z6E
Z6E, 3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
14kw (7KW*2) Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z5CS
14kw (7KW*2) Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z5A
3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z3F
3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Hot sell Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z3D
Hot sell Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
3.5KW/7KW/11KW/22KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z3B
3.5KW/7KW/11KW/22KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z1B
Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z3C
3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
3.5kw/7kw/11kw/21kw wall-mounted charging pile with plug，Level 2 EV Charger Smart Electric Vehicle Charging Stations-Z1A
3.5kw/7kw/11kw/21kw wall-mounted charging pile with plug，Level 2 EV Charger Smart Electric Vehicle Charging Stations
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
3.5kw/7kw/11kw/21kw Wall mount EV Charger Level 2 Charging Station-Z3A
3.5kw/7kw/11kw/21kw Wall mount EV Charger Level 2 Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Z6A，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger-Z6A
Z6A，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, MID meter, QR code
Z6C，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger-Z6C
Z6C，7kw/11kw/21kw wall-mounted charging pile，Level 2 EV Charger
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

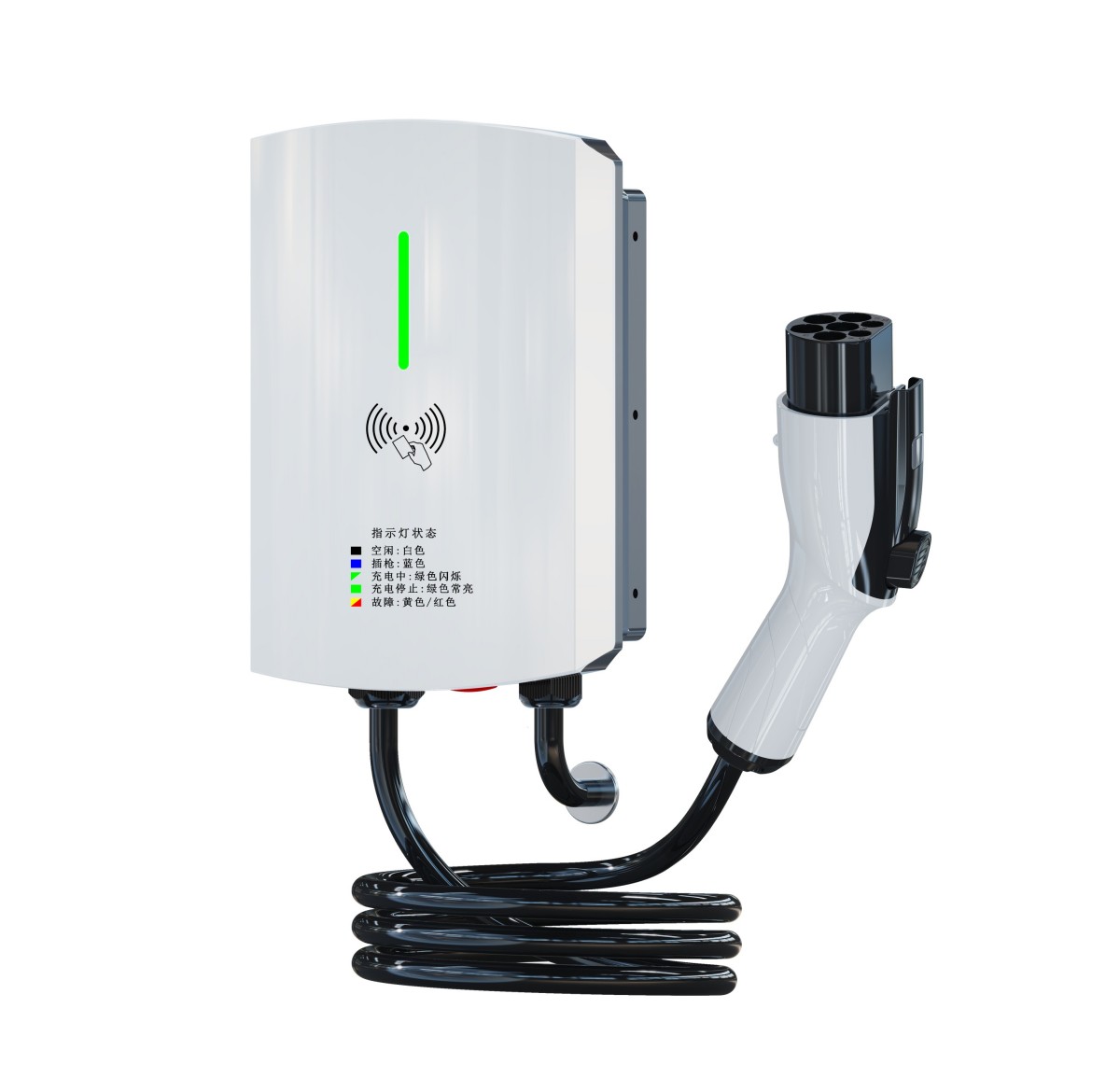

Z6E, 3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z6E
Z6E, 3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

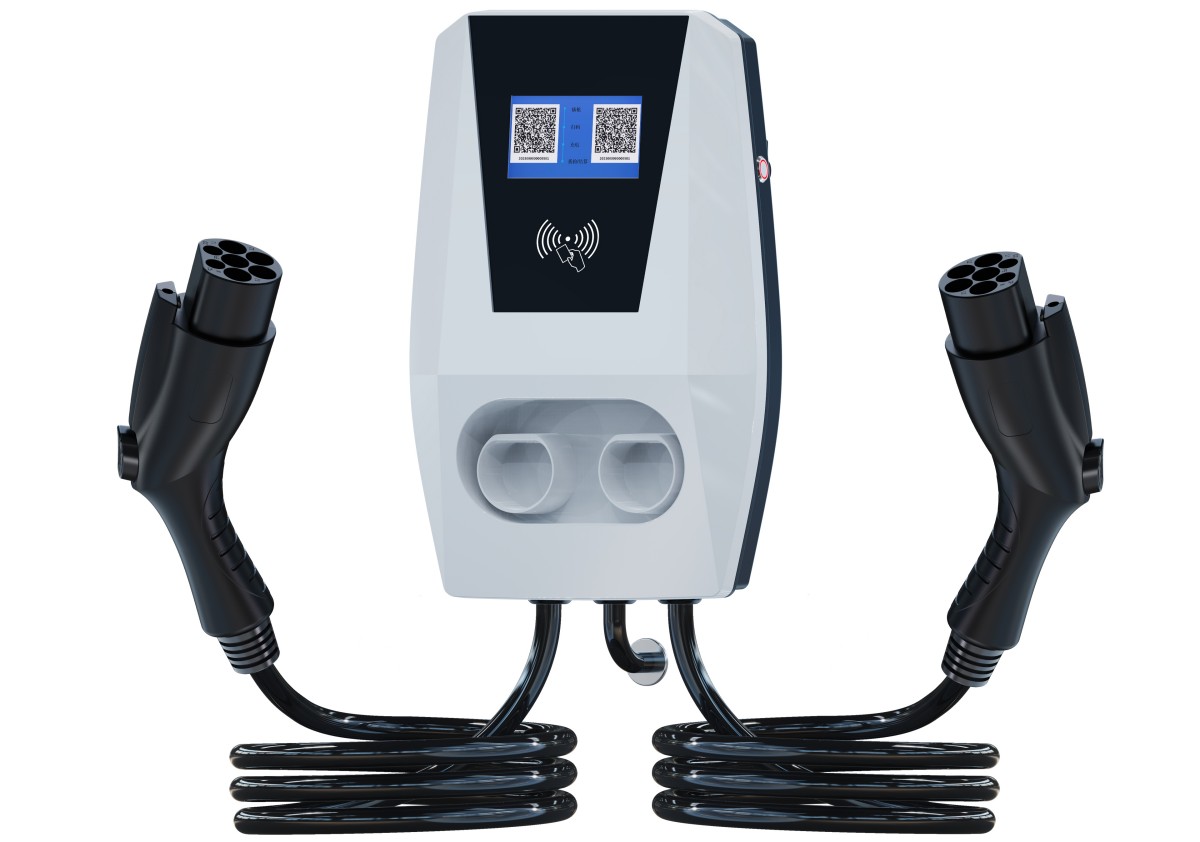

14kw (7KW*2) Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z5CS
14kw (7KW*2) Wall EV Charger Level 2, GBT Electric Vehicle Charging Station
Multiple Function Option 4G, Ethernet, WlFl, Bluetooth, RFlD, QR code

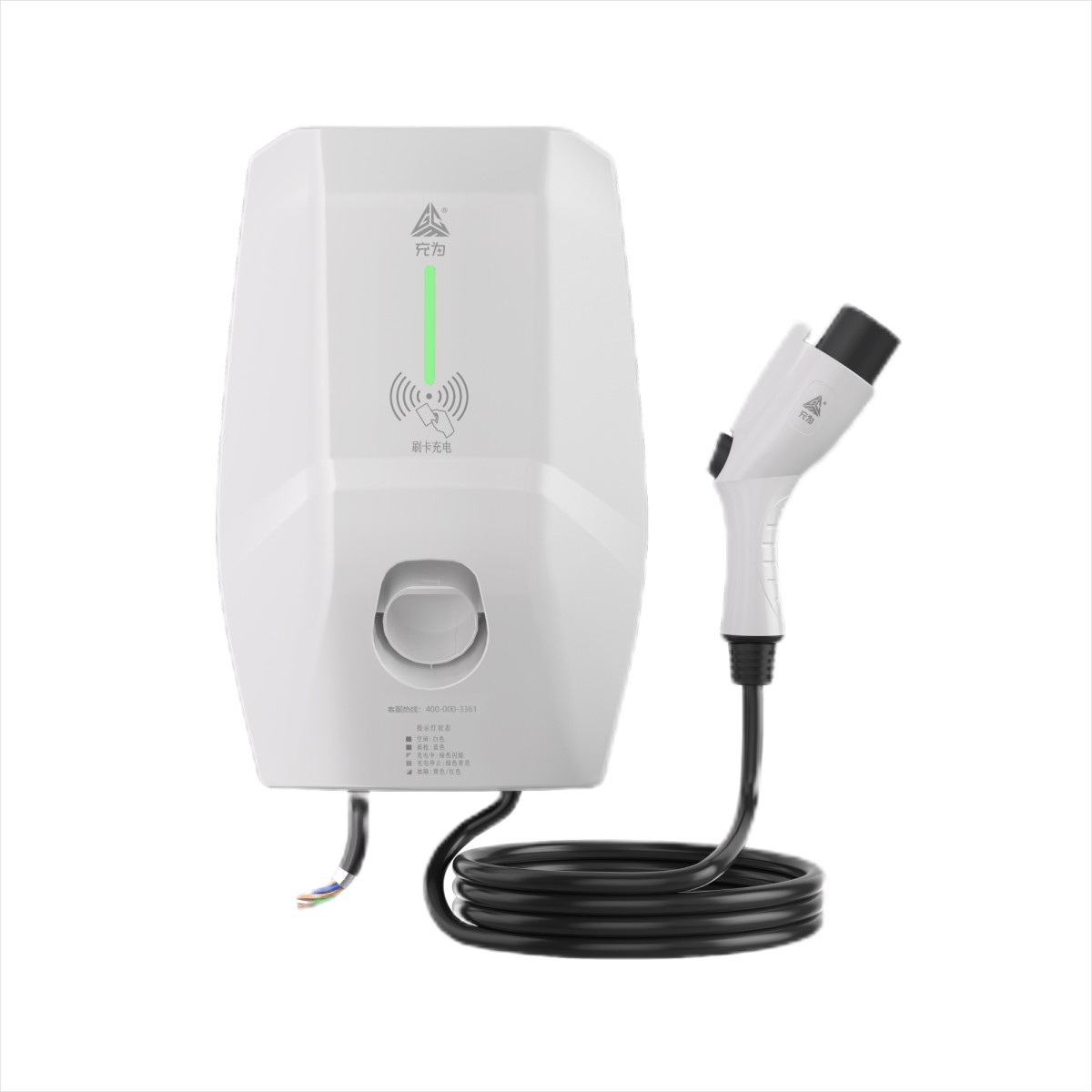

3.5KW/7KW/11KW/21KW Wall EV Charger Level 2, GBT Electric Vehicle Charging Station-Z5A
