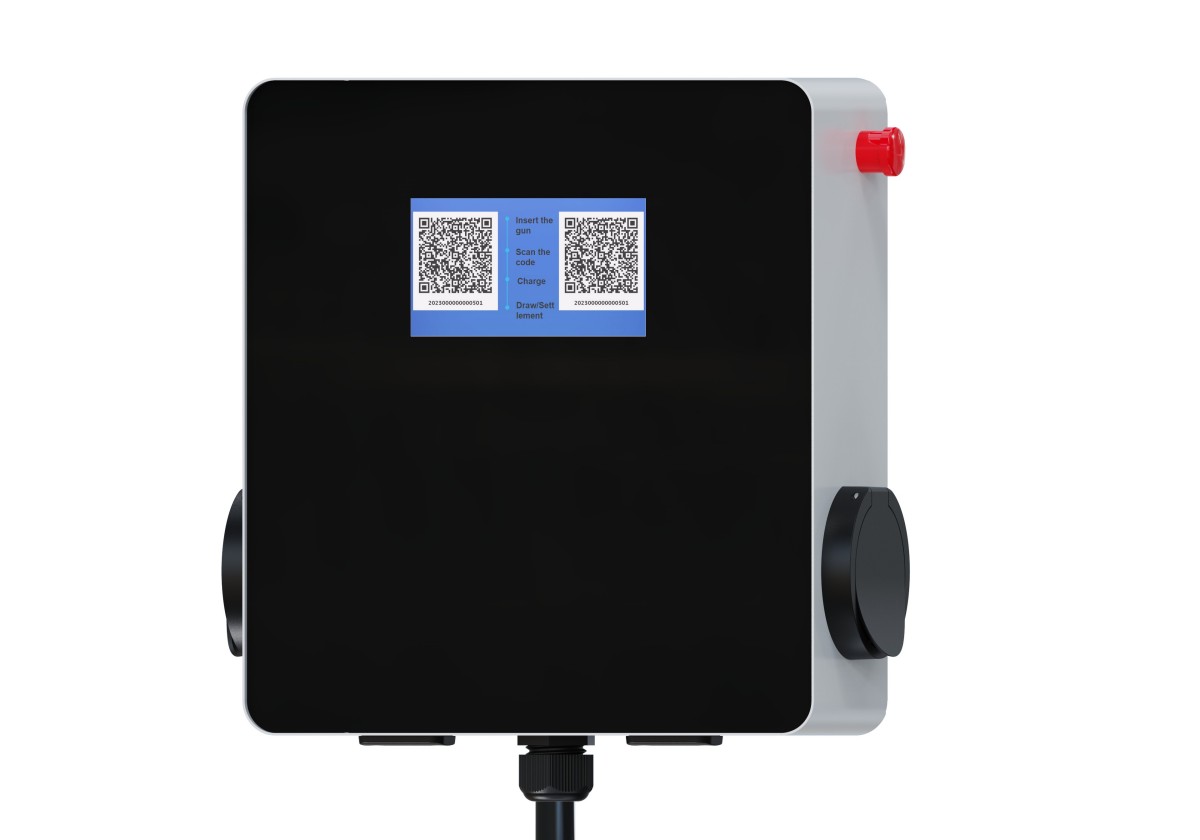

Model:Z11B
WiFi Enabled Electric Vehicle Charging Station, selectable 2*11kw/2*22kw charging pilewith plugs，Level 2 EV Charger
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Multiple Function Option
4G, Ethernet, WlFl, Bluetooth, RFlD, QR code
Previous: No more data
Product Details
| Category | Item | Specification |
|---|---|---|
| Basic Information | Product Model | Z11B Series (211KW / 222KW) |
| Input Voltage | 400Vac±15% | |
| Rated Current | 32A | |
| Rated Power | 11KW/16A; 22KW/32A | |
| Power Supply | 3 Phase | |
| Charging Type | Level 2 | |
| Charging Connector | 2Charging Connector + 2Holder | |
| Reference Standards | IEC 61851-1、IEC 62752、IEC 62196-2 | |
| Product Specification | Power Cable | 5 x 6.0 mm² (3 Phase 211KW)
|
| Charging Cable | 5 x 2.5 mm² + 1 x 0.5 mm² (3 Phase/16A)
|
|
| APP Control | Share charging pile | Supported |
| Select a Charging Mode | Supported | |
| Set Charging Current | Supported | |
| User Interface | 7" LCD Indicator; Touch Screen Option | Supported |
| Communication Interface | Bluetooth; Wi-Fi; Ethernet; 4G | Supported |
| Multiple application | OCPP1.6J; RFID Card; QR Code | Supported |
| Working Environment | Working Temp. | -30°C~+50°C |
| Humidity | 5~95% Non-Condensing | |
| IP Rate | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Crushing Force | No Damage Under 5000N | |
| Material Performance | Shell | Iron+Fireproof PC |
| Charging Plug Pin | Pure Copper Silver Plated | |
| Charging Cable | Pure Copper Core with TPU Cable Jacket; Flame Retardant Grade UL94V-0 | |
| Mechanical Life | >10,000 Times | |
| Electrical Protection | Over current protection; Residual current protection | Supported |
| Ground protection; Surge protection | Supported | |
| Over/Under voltage protection | Supported | |
| Over temp protection; Leakage protection | Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | |
| Dimension & Package | Control Box Size | L513.06W440.12H153.6mm / L20.20"*W17.33"*H6.05" |
| Cable Length | 5Meter / 16.4ft / Customized | |
| Inner Box | Not specified | |
| Outer Carton | Not specified | |
| Net Weight | ≤25KG (1 pieces) |
| Category | Item | Specification |
|---|---|---|
| Basic Information | Product Model | Z11B Series (211KW / 222KW) |
| Input Voltage | 400Vac±15% | |
| Rated Current | 32A | |
| Rated Power | 11KW/16A; 22KW/32A | |
| Power Supply | 3 Phase | |
| Charging Type | Level 2 | |
| Charging Connector | 2Charging Connector + 2Holder | |
| Reference Standards | IEC 61851-1、IEC 62752、IEC 62196-2 | |
| Product Specification | Power Cable | 5 x 6.0 mm² (3 Phase 211KW)
|
| Charging Cable | 5 x 2.5 mm² + 1 x 0.5 mm² (3 Phase/16A)
|
|
| APP Control | Share charging pile | Supported |
| Select a Charging Mode | Supported | |
| Set Charging Current | Supported | |
| User Interface | 7" LCD Indicator; Touch Screen Option | Supported |
| Communication Interface | Bluetooth; Wi-Fi; Ethernet; 4G | Supported |
| Multiple application | OCPP1.6J; RFID Card; QR Code | Supported |
| Working Environment | Working Temp. | -30°C~+50°C |
| Humidity | 5~95% Non-Condensing | |
| IP Rate | IP 55 for Controller Box; IP 55 for Charging Plug | |
| Crushing Force | No Damage Under 5000N | |
| Material Performance | Shell | Iron+Fireproof PC |
| Charging Plug Pin | Pure Copper Silver Plated | |
| Charging Cable | Pure Copper Core with TPU Cable Jacket; Flame Retardant Grade UL94V-0 | |
| Mechanical Life | >10,000 Times | |
| Electrical Protection | Over current protection; Residual current protection | Supported |
| Ground protection; Surge protection | Supported | |
| Over/Under voltage protection | Supported | |
| Over temp protection; Leakage protection | Type A (AC 30mA) / Type A+DC6mA (AC 30mA+DC 6mA) | |
| Dimension & Package | Control Box Size | L513.06W440.12H153.6mm / L20.20"*W17.33"*H6.05" |
| Cable Length | 5Meter / 16.4ft / Customized | |
| Inner Box | Not specified | |
| Outer Carton | Not specified | |
| Net Weight | ≤25KG (1 pieces) |
